FENSOLAR PURO VERTICAL KIT Duo 800W H:185cm L: 2,4m

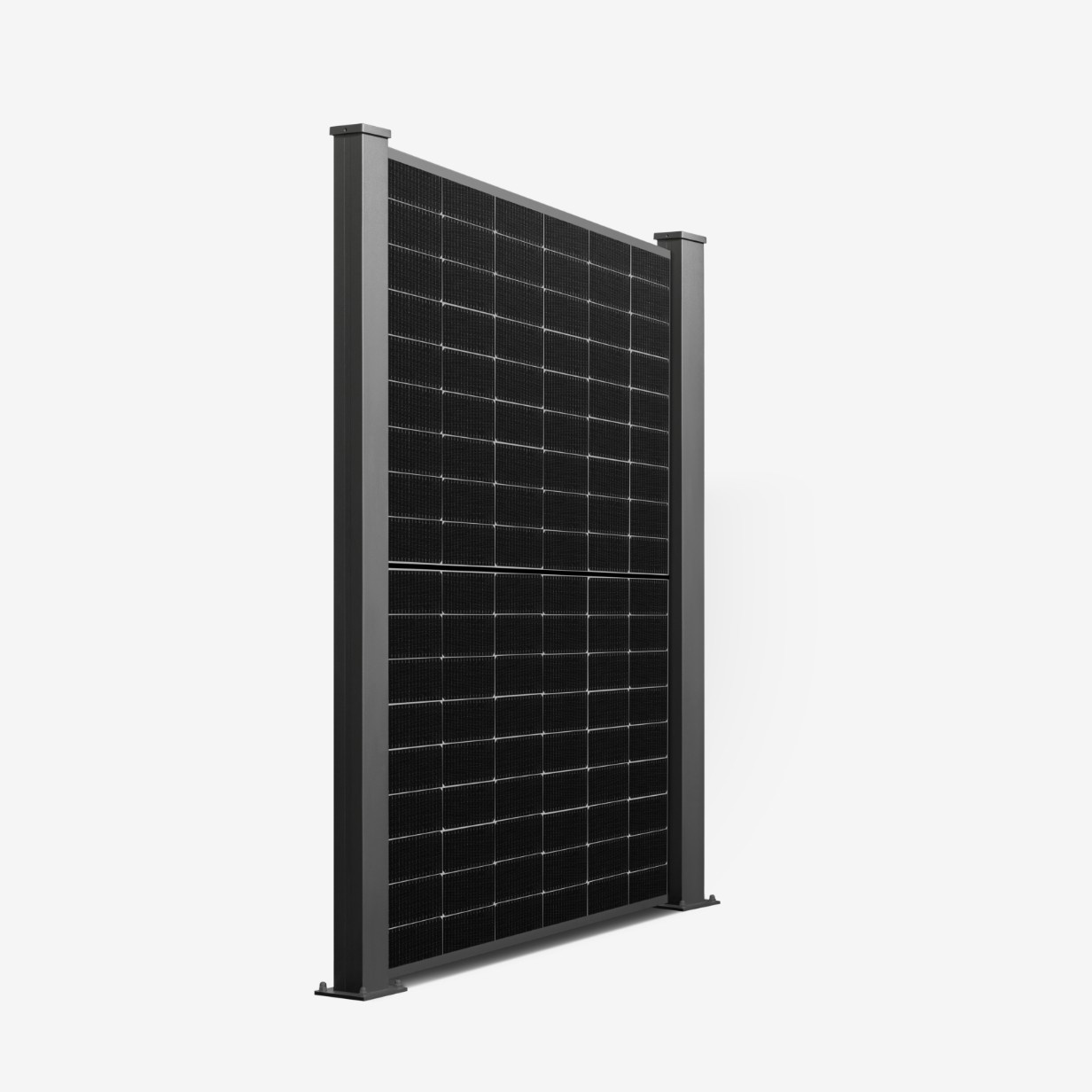

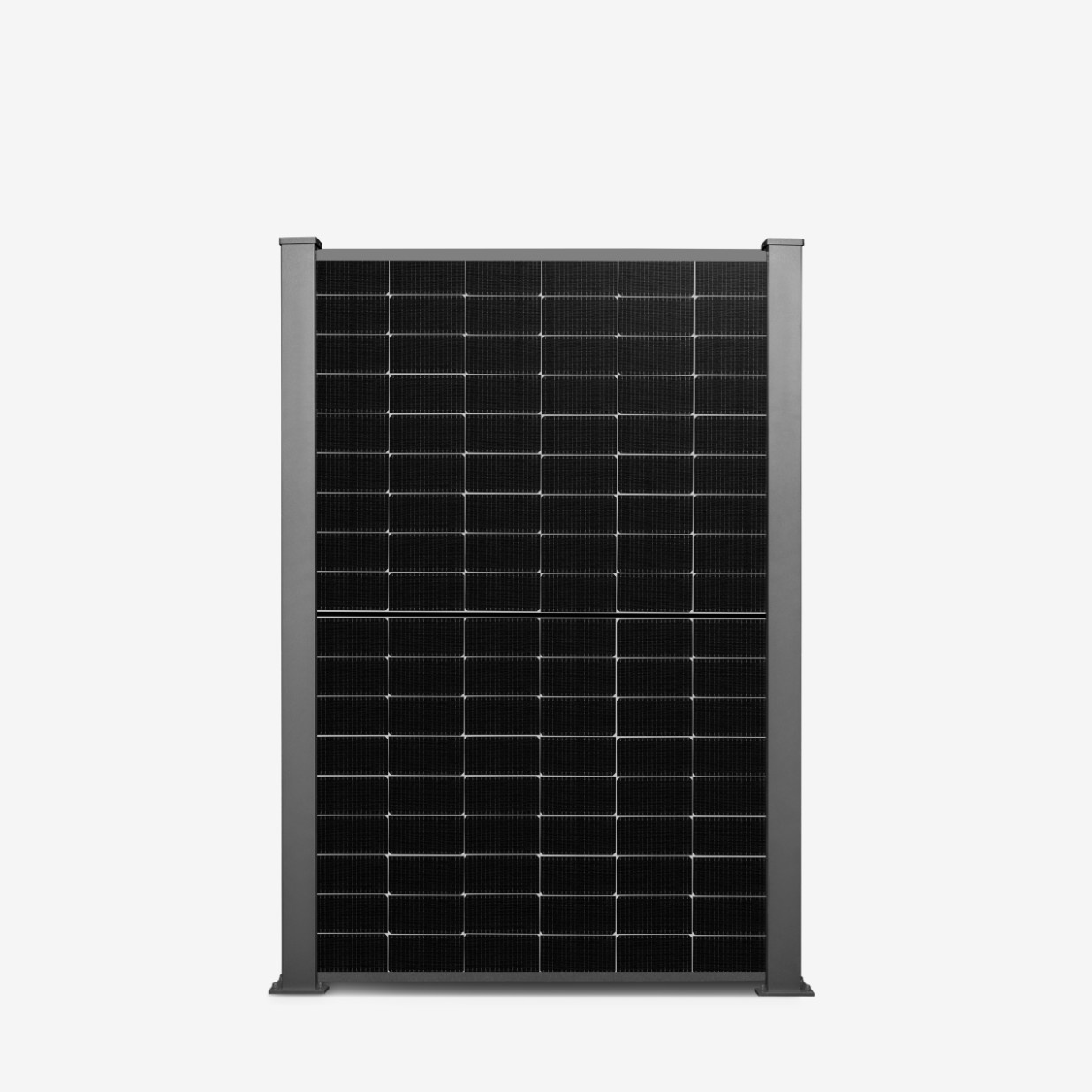

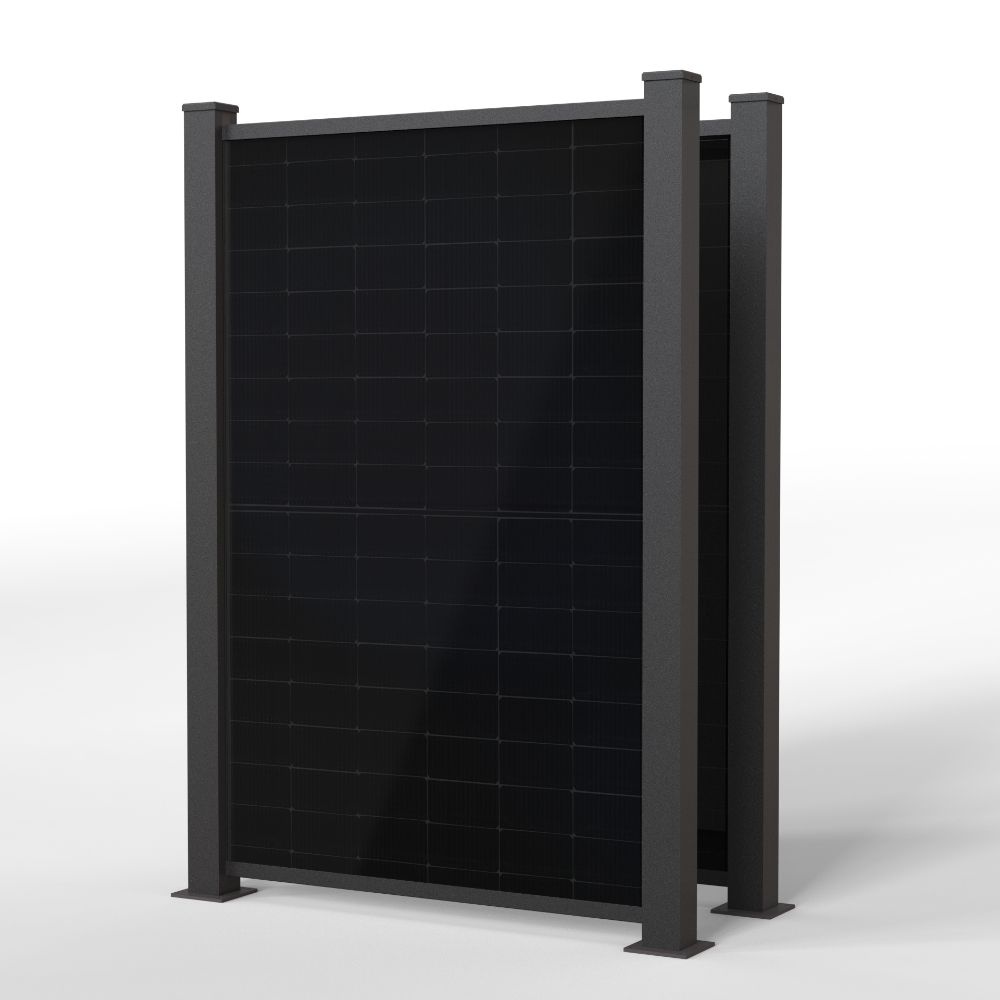

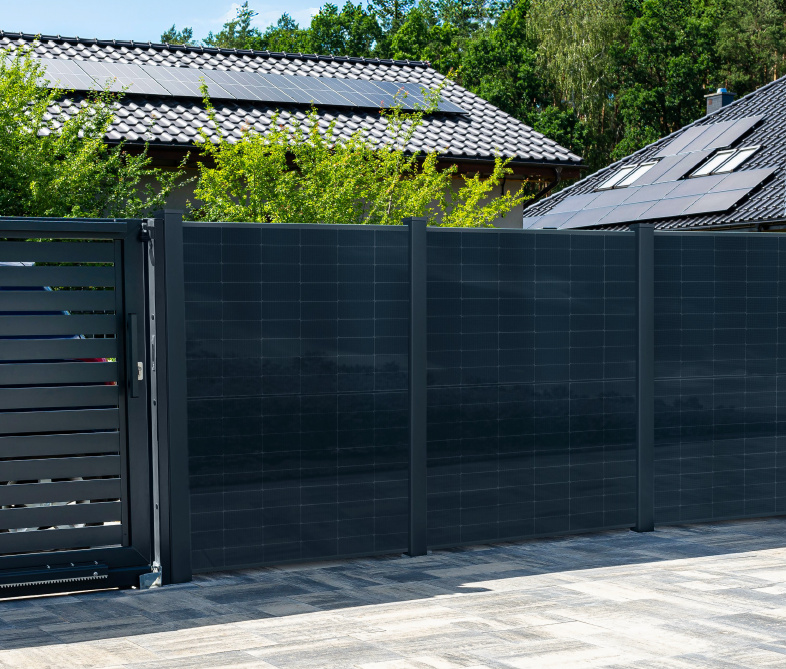

FENSOLAR PURO VERTICAL fence power plant 800W, 1.85x2.4m (HxW)

The set consists of the following elements:

2 x FENSOLAR PURO VERTICAL solar fence panels

• 2 x high-quality aluminium posts incl. post brackets and cover caps
• 2 x solar modules: 450W PV module
• 1 x end post incl. post bracket and cover cap
• 1 x inverter: 800W incl. connection cable (length: 5m)

Aluminium posts:

Special posts 9 x 9 cm made of high-quality aluminium.

• Warranty: 20 years (UV protection, colour fastness, weather resistance)
• Dimensions: 9 x 9 cm
• Colour: anthracite (RAL 7016) with fine texture

450W PV module

• Bifacial glass/glass photovoltaic module with 450W
• n-type cell with low LID

  Power
  Power: 450 watts | Efficiency: 22.5%
  Nominal voltage (Umpp): 33.69 V | Nominal current (Impp): 13.36 A
  Temperature ranges: -40°C + 85°C | Number of monocrystalline cells: 108

  Dimensions
  Dimensions: 1762 x 1134 x 30 mm | Weight: 24.6 kg
  Module frame colour: Black | Glass thickness: 2 mm each (heat-treated)

  Optical characteristics
  Frame colour: Black | Back sheet colour: Transparent
  Bifacial: Yes | Full Black: Yes

  Connection
  QC 4.10-351/ MC4-EVO2A | Cable length: 130 cm

  Certifications and warranty
  IEC61215(2021), IEC61730(2023) ,IEC61701,IEC62716
  IEC62941：2019：Quality system for the manufacture of PV modules
  30-year linear performance warranty, 25-year product material warranty

Inverter 800W
Maximum input voltage: 60V | MPPT voltage range: 28-60V
Peak output power: 800VA | MPPT trackers: 2
Nominal output voltage: 230V / 170-278V (AC) | Efficiency: 97.3%
Width: 260mm | Height: 220mm | Depth: 43mm

Subject to technical changes.

The kits are supplied as standard with posts 245 cm in length for setting in concrete. Posts with customised base plates can be supplied on request.
