FENSOLAR PURO VERTICAL extension module 450 W + 1 post

FENSOLAR PURO VERTICAL extension module 450 W, 1.85 x 1.2 m (H x W)

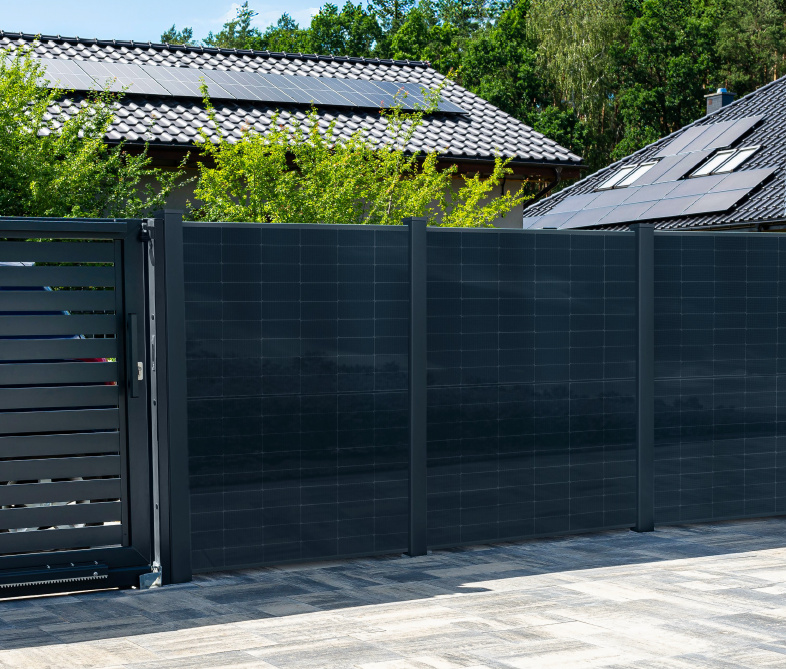

This set is intended as a basic kit for putting together your own customised vertical solar power station.
Divide the length of your desired enclosure by 1.2 m to obtain the required number of extension modules.
Your enclosure then only needs to be finished with one extra end post, which must be ordered separately.
Next, calculate the total power of your power station and, if your power exceeds 800W, contact an electrician to select the right inverter and make the necessary technical connections.

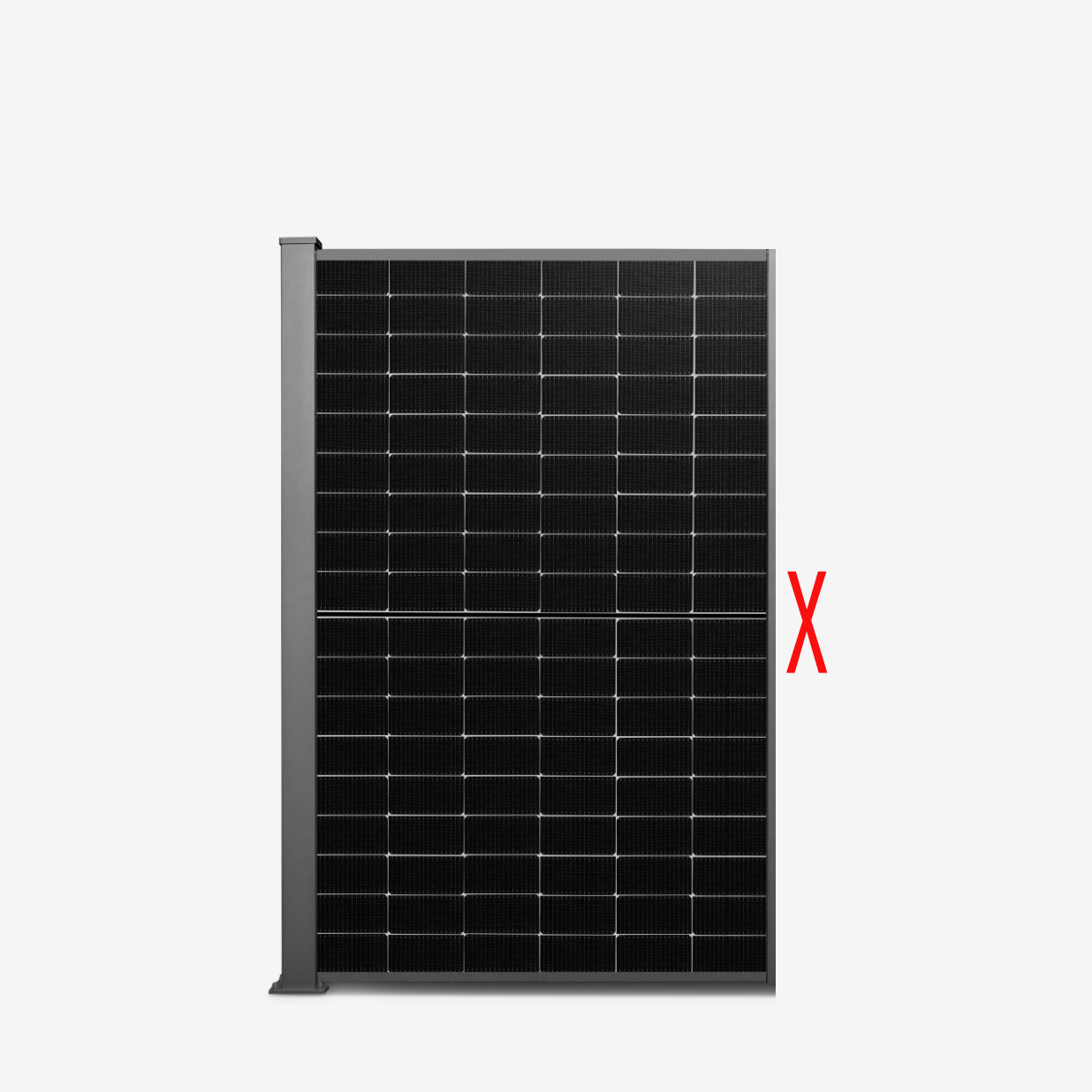

This set consists of the following components:

• 1 x high-quality aluminium post incl. brackets and cover caps
• 1 x solar panel: 450W PV module

Aluminium posts:

Special 9 x 9 cm posts made of high-quality aluminium.

• Warranty: 20 years (UV protection, colour fastness, weather resistance)
• Dimensions: 9 x 9 cm
• Colour: anthracite (RAL 7016) with fine texture

450 W PV module

• Bifacial glass/glass photovoltaic module with 450 W
• N-type cell with low LID

  Power
  Power: 450 watts | Efficiency: 22.5%
  Nominal voltage (Umpp): 33.69 V | Nominal current (Impp): 13.36 A
  Temperature range: -40 °C + 85 °C | Number of monocrystalline cells: 108 pieces

  Dimensions
  Dimensions: 1762 x 1134 x 30 mm | Weight: 24.6 kg
  Module frame colour: black | Glass thickness: 2 mm (heat-treated)

  Optical characteristics
  Frame colour: black | Back sheet colour: transparent
  Bifacial: yes | Completely black: yes

  Connection
  QC 4.10-351/ MC4-EVO2A | Cable length: 130 cm

  Certifications and warranty
  IEC61215(2021), IEC61730(2023) ,IEC61701,IEC62716
  IEC62941：2019：Quality system for the production of PV modules
  30-year linear performance warranty, 25-year product material warranty

Subject to technical changes.

The kits are supplied as standard with posts 245 cm in length for setting in concrete. Posts with customised base plates can be supplied on request.
