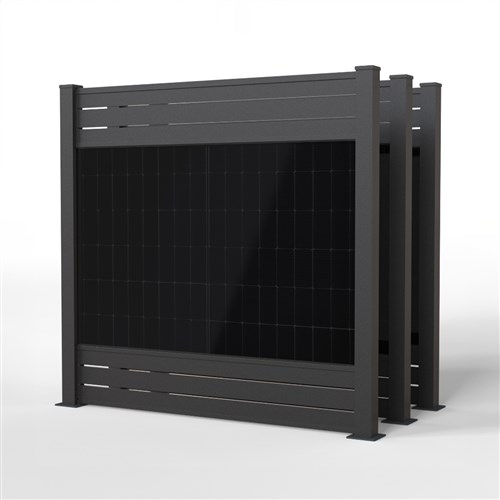

FENSOLAR ALU KIT Trio 1200W H:180cm L: 5,55m

Article number:	FENSOLARALUKITTRIO
Delivery time:	4 - 6 weeks

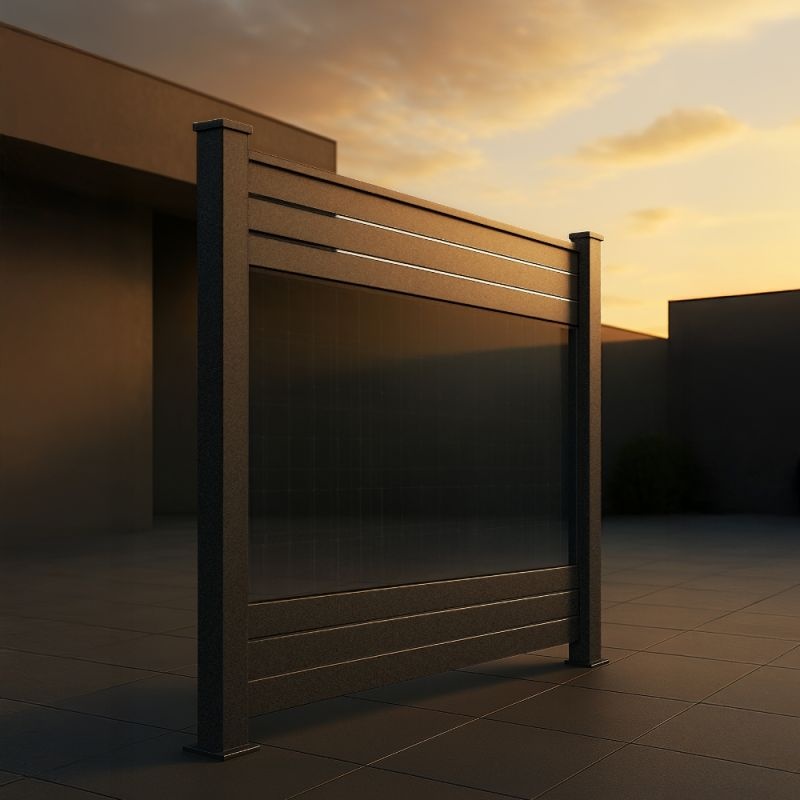

FENSOLAR ALU fence power plant 1200W, 1.80 x 5,55 m (HxW)

The set consists of the following elements:

3 x FENSOLAR ALU solar fence panels

• 18 x aluminium profiles including end strips and profile strips
• 3 x high-quality aluminium posts incl. post brackets and cover caps
• 3 x solar modules: 450W PV module
• 1 x end post incl. post bracket and cover cap
• 1 x inverter: 1600W incl. connection cable (length: 5m)

Aluminium posts:

Special posts 9 x 9 cm made of high-quality aluminium.

• Warranty: 20 years (UV protection, colour fastness, weather resistance)
• Dimensions: 9 x 9 cm
• Colour: anthracite (RAL 7016) with fine texture

450W PV module

• Bifacial glass/glass photovoltaic module with 450W
• n-type cell with low LID

  Power
  Power: 450 watts | Efficiency: 22.5%
  Nominal voltage (Umpp): 33.69 V | Nominal current (Impp): 13.36 A
  Temperature ranges: -40°C + 85°C | Number of monocrystalline cells: 108

  Dimensions
  Dimensions: 1762 x 1134 x 30 mm | Weight: 24.6 kg
  Module frame colour: Black | Glass thickness: 2 mm each (heat-treated)

  Optical characteristics
  Frame colour: Black | Back sheet colour: Transparent
  Bifacial: Yes | Full Black: Yes

  Connection
  QC 4.10-351/ MC4-EVO2A | Cable length: 130 cm

  Certifications and warranty
  IEC61215(2021), IEC61730(2023) ,IEC61701,IEC62716
  IEC62941：2019：Quality system for the manufacture of PV modules
  30-year linear performance warranty, 25-year product material warranty

Inverter 1600W
Maximum input voltage: 60V | MPPT voltage range: 16-55V
Peak output power: 1600VA | MPPT trackers: 4
Nominal output voltage: 230V / 170-278V (AC) | Efficiency: 96,5 %
Width: 396mm | Height: 270mm | Depth: 45mm

Subject to technical changes.

Les kits sont livrés en standard avec des poteaux de 245 cm de long à sceller dans le béton. Sur demande, des poteaux avec une plaque de base adaptée peuvent être fournis.
